Main Engine Cylinder L.O
Lubrication System Main Engine Fuel/Gas
Valve Test Device Main Engine Sealing Oil Unit Main Engine Hydraulic
Top Bracing Main Engine Hydraulic Tools Package
  • M/E CYLINDER의 움직임의 원할한 작동을 위한 윤활유 가열 및 공급 장치
  • 전자제어방식으로 분사 타이밍 및 소모량을 제어
  • MAN ES(MK-I) 와 WIN GD(MK-ε) 엔진 모두 2세대 LUBRICATOR 적용

Cylinder Lubricator Unit - MAN ES

certificate 2
ME (60~95ME)
certificate 2
ME (35~50ME)
certificate 2
MC

Cylinder Lubricating Pump - WIN GD

certificate 2
Mk-ε
certificate 2
Mk-I

Heating Tank Unit & Booster Pump Station & A-ECL Oil Supply Unit

certificate 2
Heating Tank Unit
ME
certificate 2
Booster Pump Unit
MC
certificate 2
A-ECL Oil Supply Unit
UEC (J-ENGINE)
  • 메인 엔진에 장착 되는 feul/gas VALVE의 분사 및 누유 등의 테스트를 위한 장치
  • 디젤 엔진 및 친환경 이중 연료 가스 엔진(GI, GIE, LGIP, LGIM/X-DF-M, LGIA/WX-DF-A)용 테스트장치의 설계와 생산 전반을 주도
  • MAN ES, WIN GD 유지보수 권장규정 준수

MAN ES

certificate 2

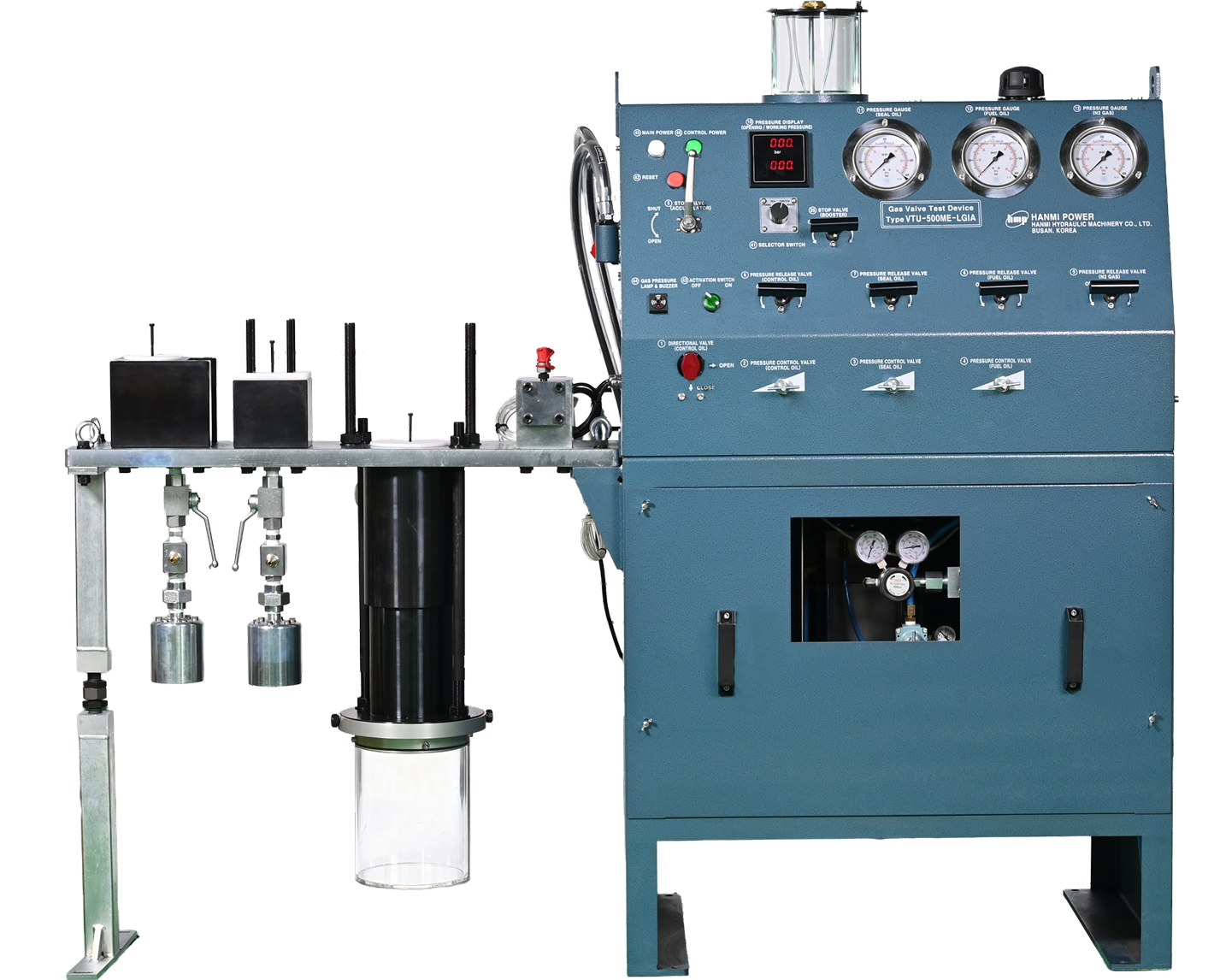

VTU-500ME-LGIA
New Develophing
certificate 2

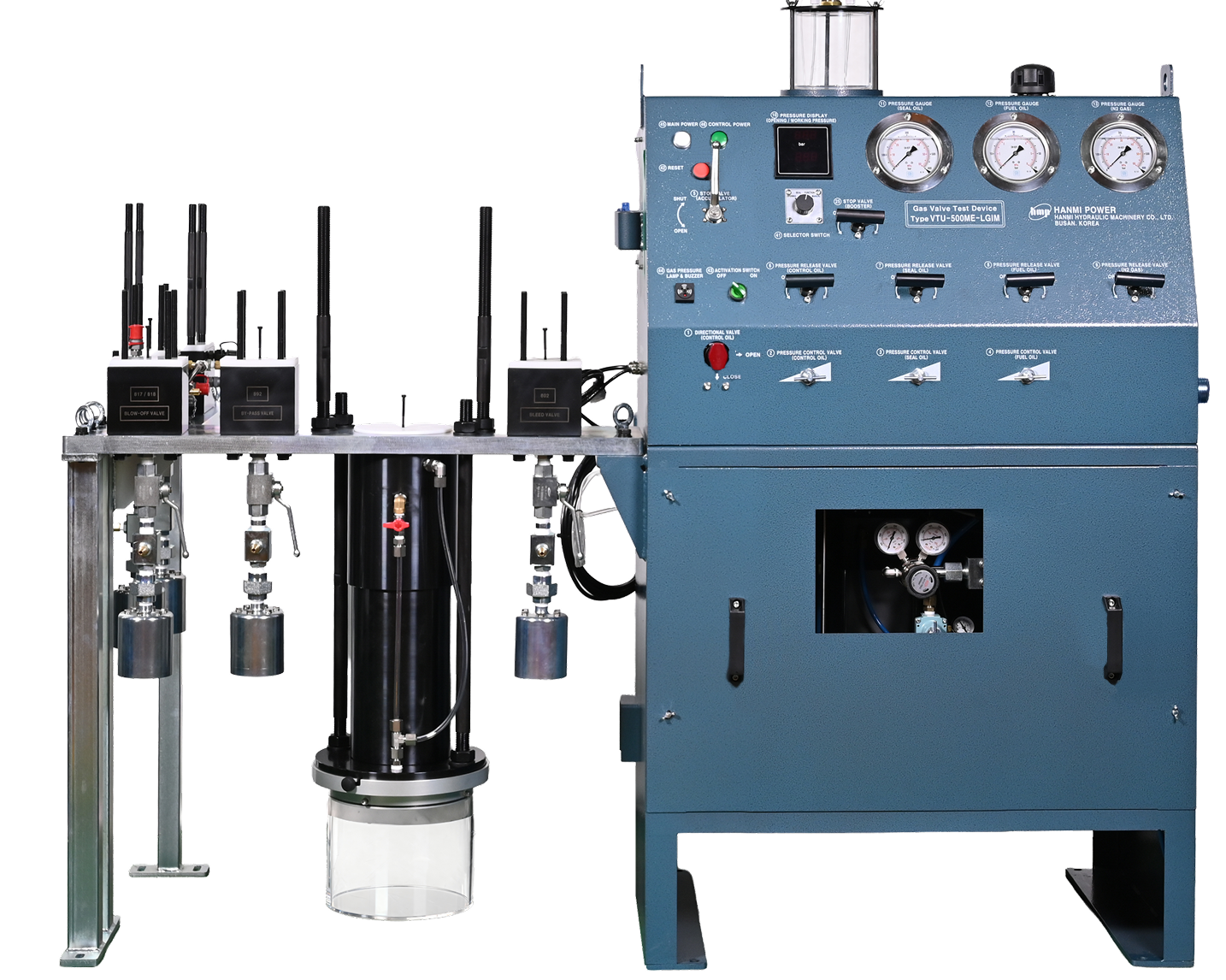

VTU-500ME-LGIM
New Develophing
certificate 2

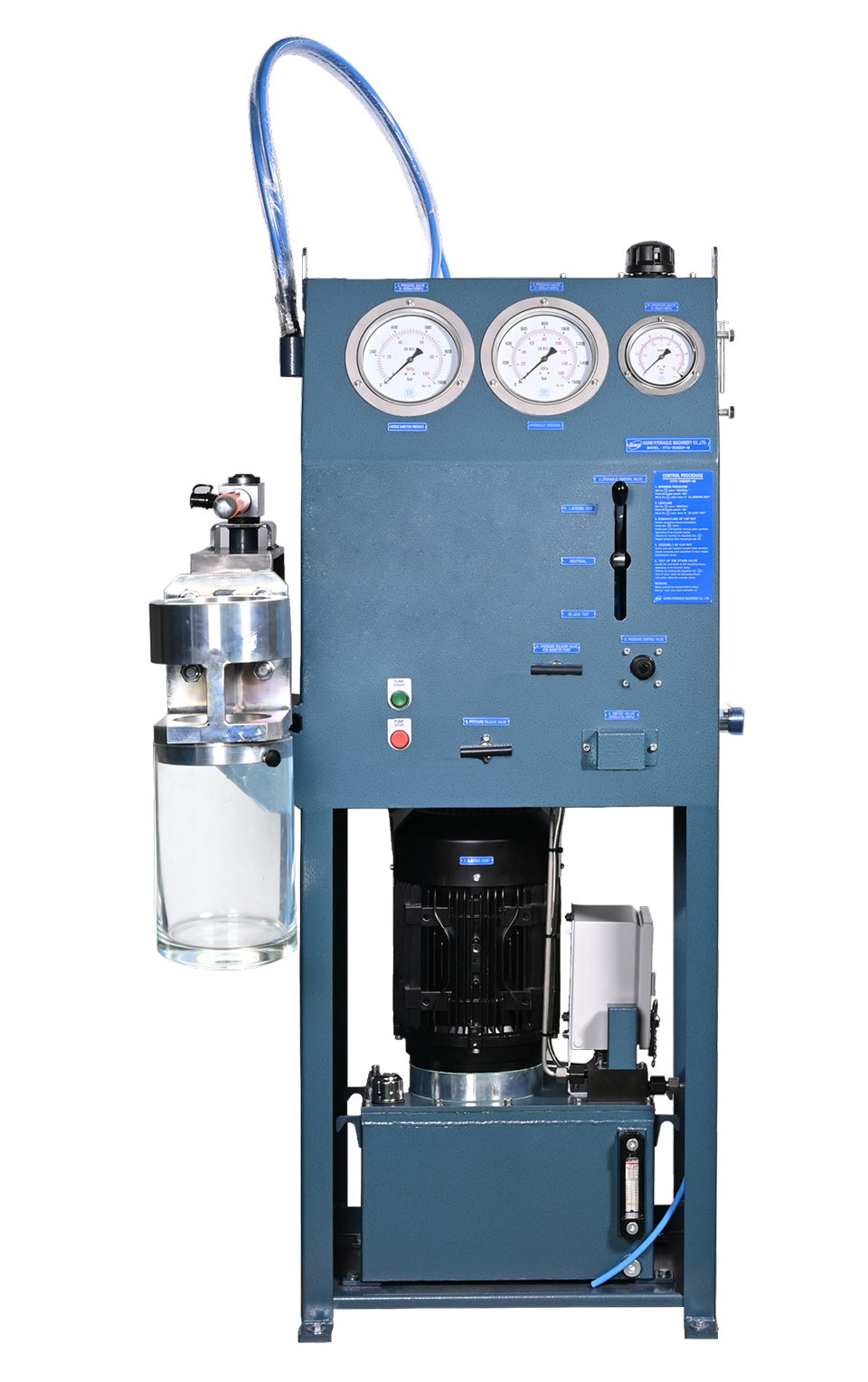

VTU-500ME-LGIP
•ME-LGIP Gas valves
•Gas injector(FBIV-P)
•Hydraulic oil & nitrogen  testing: opening / leakage
certificate 2

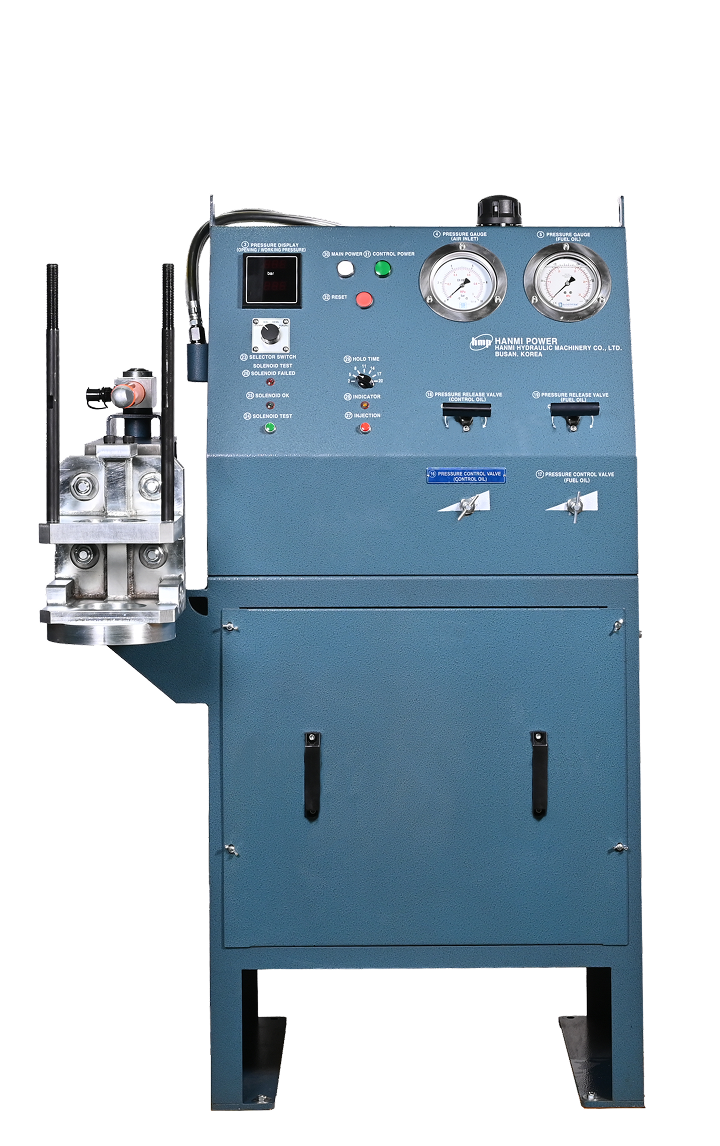

VTU-500ME-GI/GIE
•ME-GI/GIE Gas valves
•Gas injector
•Hydraulic oil & nitrogen testing: opening / leakage
certificate 2
HDFD-1100
•Slide valve
•Diesel injector
•Hydraulic oil testing: opening
certificate 2
F(P)BTD-1300
•Fuel Booster(Pilot) Injection Valve
•Diesel injector
•Hydraulic oil testing: opening / venting / leakage
certificate 2
FMTD-2200
•ME-GA FBIV & MBIV
•Diesel & Gas injector
•Hydraulic oil & nitrogen  testing: opening / leakage

WIN GD

certificate 2
VTUE-2500/DF
•W-X82~92/DF
•Diesel injection & pilot valve
•Hydraulic oil testing: opening pattern
certificate 2
VTUE-2000/DF
•W-X52~72/DF
•Diesel injection & pilot valve
•Hydraulic oil testing: opening pattern
certificate 2
VTU-2500DF-M
New Develophing
certificate 2
VTU-2500DF-A
New Develophing
  • 친환경 연료 엔진의 밸브 내부에 씰링 오일을 공급하여 유압 오일과 가스 연료의 혼합을 방지하는 장치
  • 주요 구성품인 Membrance accumulator 수량에 따라 소형 및 대형 보어 엔진용으로 구분

Sealing Oil Unit

certificate 2 certificate 2
SOU type
Large bore
Small bore
Engine
60ME~95ME
35ME~50ME
Remark
2 accumulators / LGIM
1 accumulator / LGIM
  • 엔진과 선체 사이에 설치되어 메인 엔진에서 발생하는 열팽창과 진동을 감소시키는 장치
  • 메인 엔진의 RPM에 따라, 작동 구간(in/out service) 및 전원(on/off)의 자동 제어
  • 엔진 타입 및 고객 요구에 따라 Cylinder 개수 상이

MAN ES

certificate 2
HTBD225-30
•MAN ES Engine application
•On/Off type
•Air booster pump,  hydraulic oil auto. Filling, low oil consumption, non-air chamber anti rusting
•Control panel; M/E rpm signal input
certificate 2
HTBA225-30
•MAN ES Engine application
•On/Off type
•Air booster pump,  hydraulic oil auto. Filling, low oil consumption, non-air chamber anti rusting
•Control panel; M/E rpm signal input
certificate 2
HTBS225-30
•MAN ES Engine application
•High/Low & Stand-alone type
•Non-air supply  unit & chamber anti rusting
•Control panel(M/E rpm signal input)
certificate 2
HTBS200-30
•MAN ES Engine application
•Stand-alone type
•Non-air supply  unit & chamber anti rusting
•Control panel(M/E rpm signal input)

WIN GD

certificate 2
TBD200-30
•WIN GD Engine application
•Double acting type
•One side installation(M/E fuel pump or exhaust side)
•Push & pull operating
•Non-control panel
certificate 2
TBS250-30
•WIN GD Engine application
•Single acting type
•Both side installation(ME fuel pump & exhaust side)
•Push operating(conventional)
•Non-control panel
  • 주요 엔진 부품의 조립 및 분해 시에 사용하는 초고압 툴
  • 유압펌프, 유압 잭, 유압 호스 & 커플링 등으로 구성
  • 엔진의 요구 압력별로 다양한 모델을 구비

Air Driven High Pressure Pump-MAN ES

certificate 2
AHP-1500/1500.2
•MAN ES engine application
•Max pressure: 1,500bar
•Max flow rate: 0.35/0.5ℓ/min
certificate 2
AHP-2500/2000
•MAN ES engine application
•Max pressure: 2,000/2,500bar
•Max flow rate: 0.18/0.81ℓ/min
certificate 2
AHP-3500
•MAN ES engine application
•Max pressure: 3,500bar
•Max flow rate: 0.7ℓ/min

Air Driven High Pressure Pump-WIN GD

certificate 2
AHP-2500.1
• WIN GD engine application
• Max pressure: 2,500bar
• Max flow rate: 1.45ℓ/min (Low)/0.5ℓ/min (High)
certificate 2
AHP-3000
•WIN GD engine application
• Max pressure: 2,500bar
• Max flow rate: 0.5ℓ/min
certificate 2
AHP-3000.1
•WIN GD engine application
• Max pressure: 2,500bar
• Max flow rate: 0.5ℓ/min

Hand Operated High Pressure Pump

certificate 2
HML-1600
Max Pressure: 1,500bar
certificate 2
HML-1700 / 2000N
Max Pressure: 1,700/2,000bar
certificate 2
HML-2500
Max Pressure: 2,350bar
certificate 2
HML-3500
Max Pressure: 3,000bar

Hydraulic Jack

certificate 2 certificate 2
Working Pressure(bar)
MAN ES WIN G&D J-ENG
MC MC-C ME RTA RTF, X-engine UEC
900 1,500 2,200 900 1,500 1,000 - 1,800

High Pressure Quick Coupling

certificate 2 certificate 2 certificate 2
1.5K Series
HC-1.5K HNC-1.5K HN-1.5K
1,500bar / 150MPa 1,500bar / 150MPa 1,500bar / 150MPa
certificate 2 certificate 2 certificate 2
2.0K Series
HC-2.0K HNC-2.0K HN-2.0K
2,000bar / 200MPa 2,000bar / 200MPa 2,000bar / 200MPa
certificate 2 certificate 2 certificate 2
2.5K Series
HC-2.5K HNC-2.5K HN-2.5K
2,500bar / 250MPa 2,500bar / 250MPa 2,500bar / 250MPa

High Pressure Hose

certificate 2
Technical Specification
Application 1800bar Hose 2500bar Hose
Color Blue Red
Max. working pressure(bar) 1,800 2,500
Min. burst pressure(bar) 4,500 6,250
Outer dia.(mm) 11.2 13.2
Inner dia.(mm) 5.0 4.8
Min. bend radius(mm) 150 200
Temperature range -30℃ ~ +60℃ -30℃ ~ +60℃
Couplings/nipples 1.5K series 2.5K series
